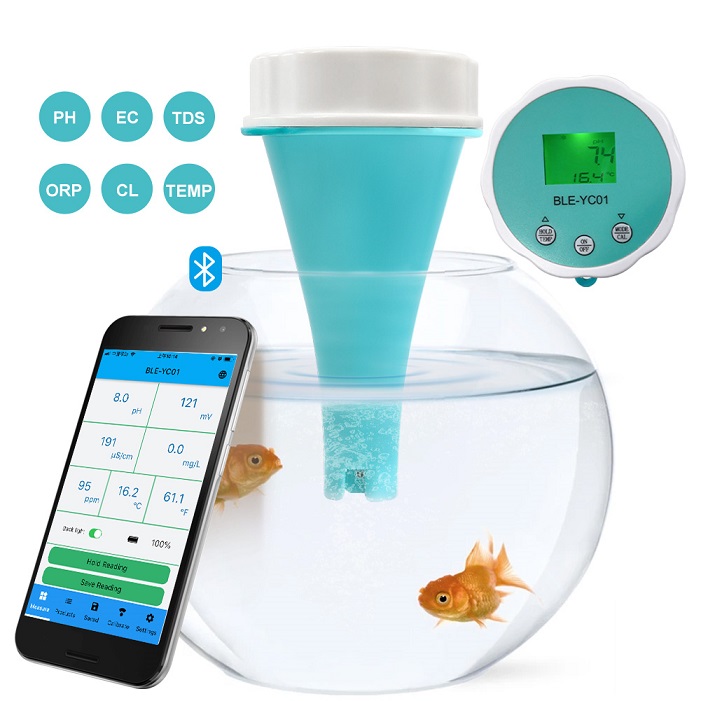

6IN1 BLE-YC01 pH/EC/TDS/ORP/Chlorine/Temp
- Brand Water Testing
- Model 6IN1 BLE-YC01 pH/EC/TDS/ORP/Chlorine/Temp
6IN1 BLE-YC01 pH/EC/TDS/ORP/Chlorine/Temp
Please Note ! ! !
1. Scan the QR code and download the mobile APP software. There are two types of QR code, Android and ios, please scan and download and install according to the corresponding QR code of the mobile phone system.
2. Turn on the Bluetooth function: After the water quality pen is turned on, there is no Bluetooth logo and it cannot connect to Bluetooth. You need to press and hold the power button for 5 seconds, £¬and then you can connect to Bluetooth after the Bluetooth logo appears.
3. Turn off the Bluetooth function: After turning on the Bluetooth standard, press the power button for 5 seconds to turn off the Bluetooth function.
New Blutooth Chlorine Meter for Chlorinated Aquarium Pool Fish Tank Water Professional PH ORP EC TDS CL Floating Monitor
¡¾BLEY-C01 Bluetooth Swimming Pool Residual Chlorine Water Quality Tester¡¿: Can connect to Bluetooth, mobile APP real-time online monitoring, multi-functional water quality tester, professionally measure ph, orp, chlorine, ec, tds and temperature. In the application, multiple parameters are displayed quickly and simultaneously, the mobile phone APP controls the backlight, and the readings are displayed quickly and with high precision. Cloud accurate data management system, easy to save, manage and share test data without worrying about data loss. One-key lock reading function automatically sets the time interval for recording measurement results. You can set the maximum and minimum values. When the measurement result is not within the set range, the value will be displayed in red. 2 sets of calibration modes (pH: 6.86/4.00/9.18 or 7.00/4.00/10.01, all functions are calibrated when the product leaves the factory, please use it directly), suitable for swimming pools, aquariums, fish tanks, scientific experiments, agriculture, hydroponics, drinking Water, aquarium and other water quality testing.
|
Smart Bluetooth PH Meter
|
|
Selling point:
|
|
1) The mobile phone comprehensively displays all measurement functions, and the data is clear at a glance. Support mobile control with backlight and without backlight, displayed the battery level.
2)View data at any time, data can be saved automatically or manually, the time interval for saving the data can be automatically adjusted ,and data sharing is supported., data save as excel .so that the data changes can be easily
grasped.
3) The mobile phone can set the upper and lower limits of PH and TDS/EC. Set them according to your needs. When the valueyou set exceeds the test range, the interface will display a red value abnormally.
4) 5-point calibration, option two set of calibration modes, calibration records can be viewed
|
|
Feature:
|
|
Range :
ORP :-1200~+1200mV
PH: 0.01pH TEMP:0.1¡ãC;0.1¨H TDS:1ppm, 0.1ppt EC:1uS/cm;
|
|
Ever so easy to calibrate:
|
|
With five bags calibration power .
PH Two calibration methods: --4.00+6.86+9.18 PH Power or 4.00+7.00+10.01 PH Power |
Notice :
The water in the swimming pool should be between 6.5-8ph and ORP should be between 487-840mv, and the chlorine value will be displayed normally. Chlorine will not be displayed if either value is out of range;
If the PH value is lower than 6.5, it means that the water quality is too acidic and impurities, and it is necessary to add disinfectant water for disinfection.
If the ORP value is above 850mv, it means that the disinfectant has been added too much, and it is necessary to add water or change the water for neutralization.
Only support test swimming pool water quality.
Please be sure to tighten the cover when using it, do not open it, otherwise it is easy to get water.
¡¾Specification¡¿£º
1.pH
Range: 0.1-14.0 pH
Resolution: 0.1 pH
Accuracy: ¡À 0.1 pH
2.CL:
Range: 0.1-4.0mg/L
Resolution: ¡À 0.1mg/L
3.EC:
Range: 0-1999¦ÌS/cm; 2000-10000¦ÌS/cm; 10.01-20.0 mS/cm
Resolution: 1¦ÌS/cm; 10¦ÌS/cm; 0.01mS/cm;
Accuracy: ¡À 2% F.S
4.TDS:
Range: 0-999ppm; 1000-9990ppm;
Resolution: 1 ppm; 10 ppm;
Accuracy: ¡À 2% F.S.
5.ORP:
Range: -999~+999mV
Resolution: 1mV
Accuracy: 15mV
6.Calibration:
pH : 6.8/4.0/9.18 or 7.0/4.0/10.0
EC/TDS : 1413¦ÌS/cm; 12.88 mS/cm; 111.8 mS/cm
ORP: 256mV
Calibration records can be viewed
ATC Temp : 0.1¡æ-60.0¡æ
Environment : 0.1¡æ-80.0¡æ RH: max 90%
TDS Factor : 0.1-3.0 (Factory Default 0.5)
EC Temp. Compensation : 0.1-3.0 %/C (Factory Default 2.0 %/C)
Bluetooth : mobile bluetooth 5.2 Version
Backlights : with backlights, support mobile control
Data : save (Save as Excel sheet);Printing(support)
Waterproof: IP67
Battery : 3*AAA low battery indicator (not included)
Standby time: one year
Data Storage: Can store the latest 1000 records of data
Dimensions/Weight: Height: 155mm; Diameter: 85 mm(6.1*3.35in)/210g
Packing list: 1 ¡Á instrument; 5 ¡Á powder calibration (4.01 & 6.86*9.18, 7.00 10.01); 1 ¡Á English instruction manual
¡¾Instrument Measurement Instructions¡¿:
ORP is generally used to control chlorine dosing. Oxidation-reduction potential difference (ORP) can reflect the oxidative capacity, chlorine can be used to control the oxidative capacity, on the contrary, ORP can be used to reflect the amount of residual chlorine. A Suitable ORP value for swimming pool water is 740mV.
Remarks: The pH of the swimming pool should be between 6.5-8 and the ORP should be between 487-840. The residual chlorine value will be displayed normally. If any of these two values are not within the range, it will not be displayed normally.If the PH value is lower than 6.5, it means that the water quality is more acidic and impurities need to be disinfected with disinfectant water. If the ORP value is above 850, it means that the disinfectant solution is too much to add water or change the water for neutralization.
Data synchronization display£º
The ph Meter data will be synchronized to the mobile APP.Multiple data can be displayed at the same time, which is convenient and quickNo need to frequently operate the ph Meter to view data
Automatic data storage and sharing £º
The data can be saved automatically and manually. The saved data can be exported to excel and shared with your friends
* Auto save can set the save time interval in settings.
* Notes can be filled in when saving manually
You can set the maximum or minimum measurement by yourself :
Set the maximum or minimum limit of PH according to user requirements, If the test result exceeds the range the value will be displaved in red
PH automatic 5-point calibration, and equipped with calibration powder You can select Asia standard/EU standards in the APP£º
1 . Asia standard: pH 4.00, pH 6.86, pH 9.18
2 . EU standards: pH 4.00, §âH 7.00, pH10.01
Click the icon in the upper right corner to switch between Chinese and English
The data is exported to excel format for easy viewing and sharing :
1. Manually save you can add notes
2. Export Excel to share with friends
3. View data, you can view measurement values, time and date remarks, etc.
